GB10181N

Unrivaled Air-Cooled HGX H100 8-GPU AI Server for Ultimate AI Performance

Support NVIDIA HGX H100 8-GPU
Deploy Latest NVIDIA NVLink® & NVSwitch™ Technology

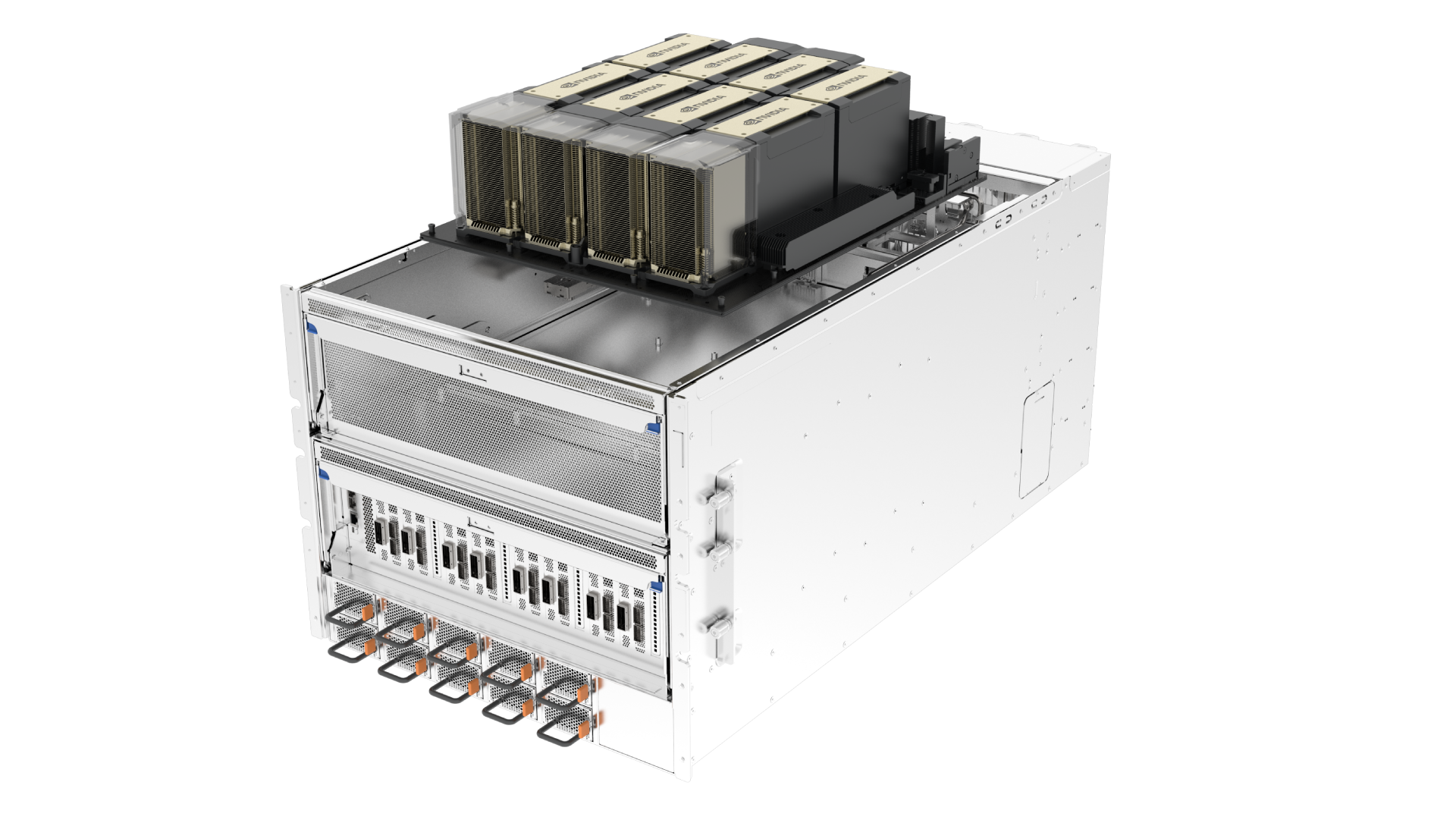

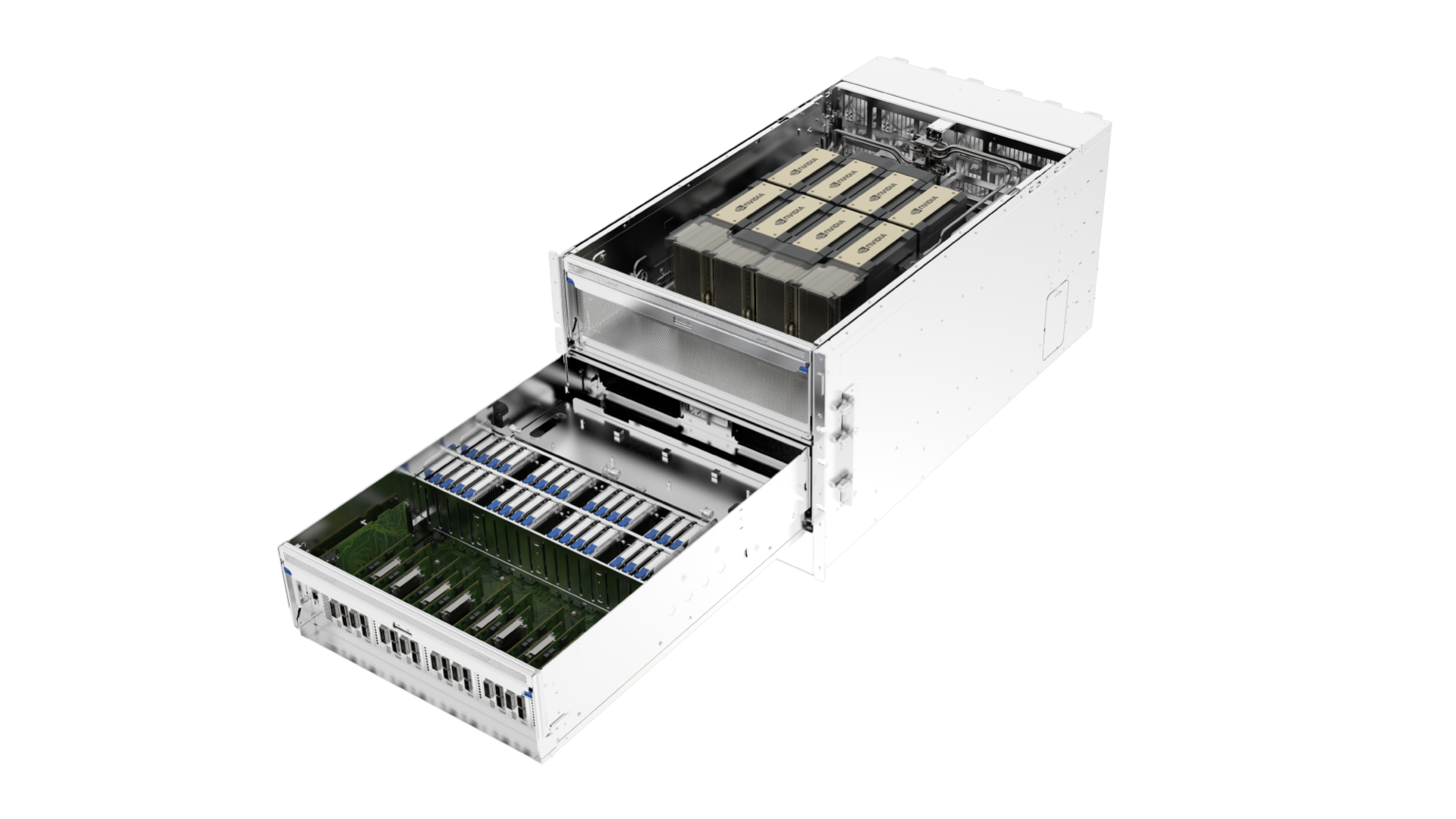

Two-layer GPU & IO Sleds for Easy Scalability and Better Thermal Efficiency
Support 20 x PCIe 5.0 Slots & 32 x NVMe Drive Bays
Air Cooling Solution

Application

Generative AI

Large Language Model (LLM)

Hyperscale Data Center

High Performance Computing

AI and Machine Learning

Overview

Spec

Unrivaled HGX H100 8-GPU AI Server

Purpose-built to accelerate generative AI innovations, the AI server leverages the NVIDIA HGX H100 baseboard with eight Tensor Core GPUs, each connected through extremely fast fourth-generation NVIDIA NVLink, to deliver 32 petaflops of performance for large-scale AI models, complex simulations, and massive datasets.

Innovative Disaggregated Approach

The AI server can be paired with a single CPU head node server, creating a unified AI solution. This disaggregated GPU and CPU approach enhances flexibility, enabling you to select the CPU head node server that best suits your needs.
(Ingrasys head node solution: SV2121A/SV2121I)

High Expansion Capability

Adopting a one-GPU-to-one-NIC topology, the powerful server offers high expansion capability by accommodating 8 NICs, which enables fast interconnections between GPUs within a GPU cluster. In addition, its two-layer design features easy scalability up to 32 NVMe Drives and enhances thermal efficiency, allowing the server to deliver unprecedented performance and agility.

Certification

Supported GPU	NVIDIA HGX H100 8-GPU
Expansion Slots	20 x PCIe 5.0 x16 Slots
Storage	32 x Hot-swap U.2 NVMe Drive Bays

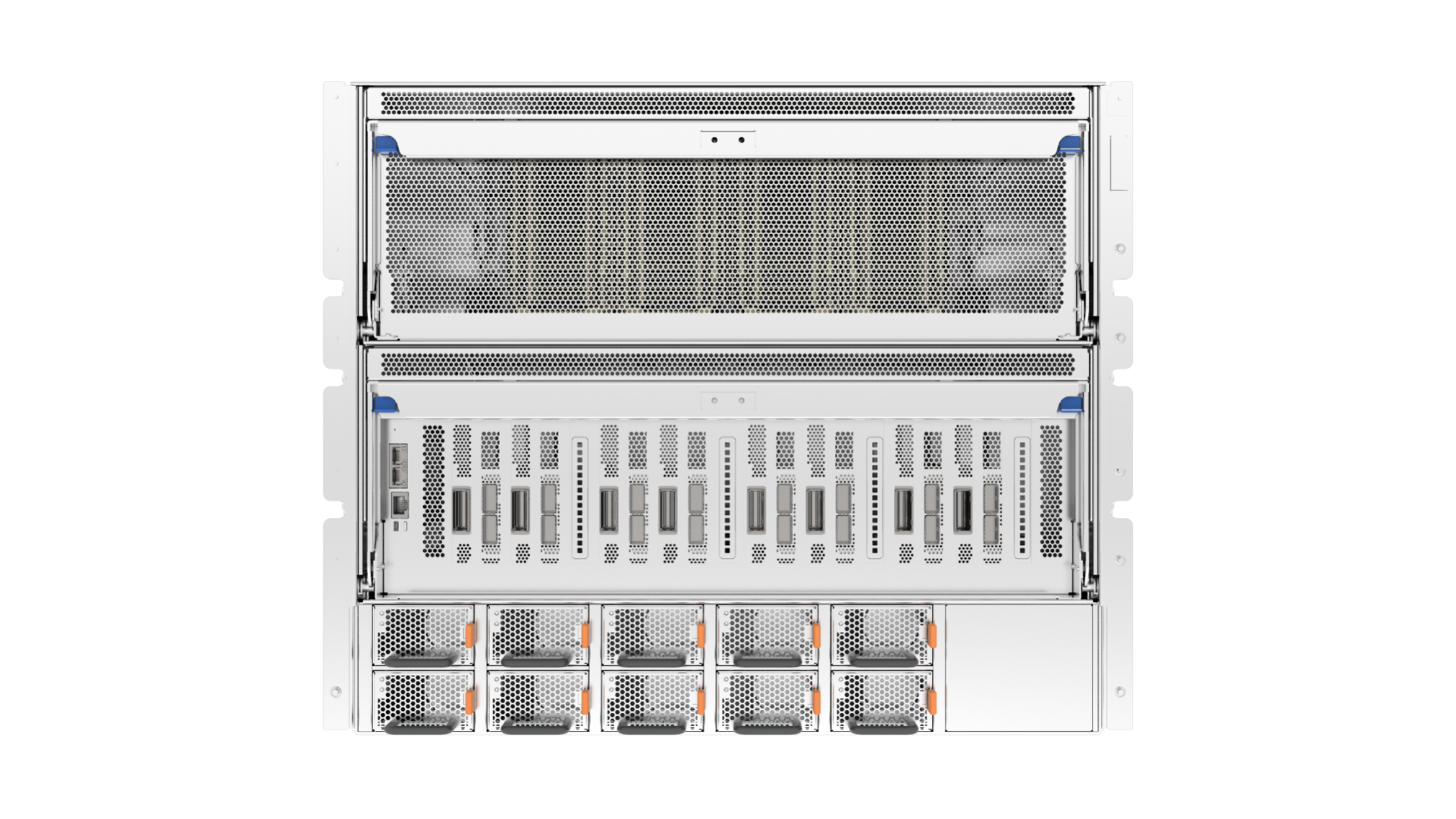

Front Panel	1 x Power LED, 1 x UID LED, 1 x Attention LED 1 x 1GbE/RJ45 Management Port 1 x RJ45 Console Port
Form Factor	10 U Rackmount (4U IOB Sled with 4U GPU Sled)
Chassis Dimensions (H x W x D)	17.3" x 20.0"x 37.3"/ 440.5mm x 508.0mm x 948.8mm
Management	1 x ASPEED AST2600
Power Supply	5+5 Redundant 3000W Platinum Power Supplies

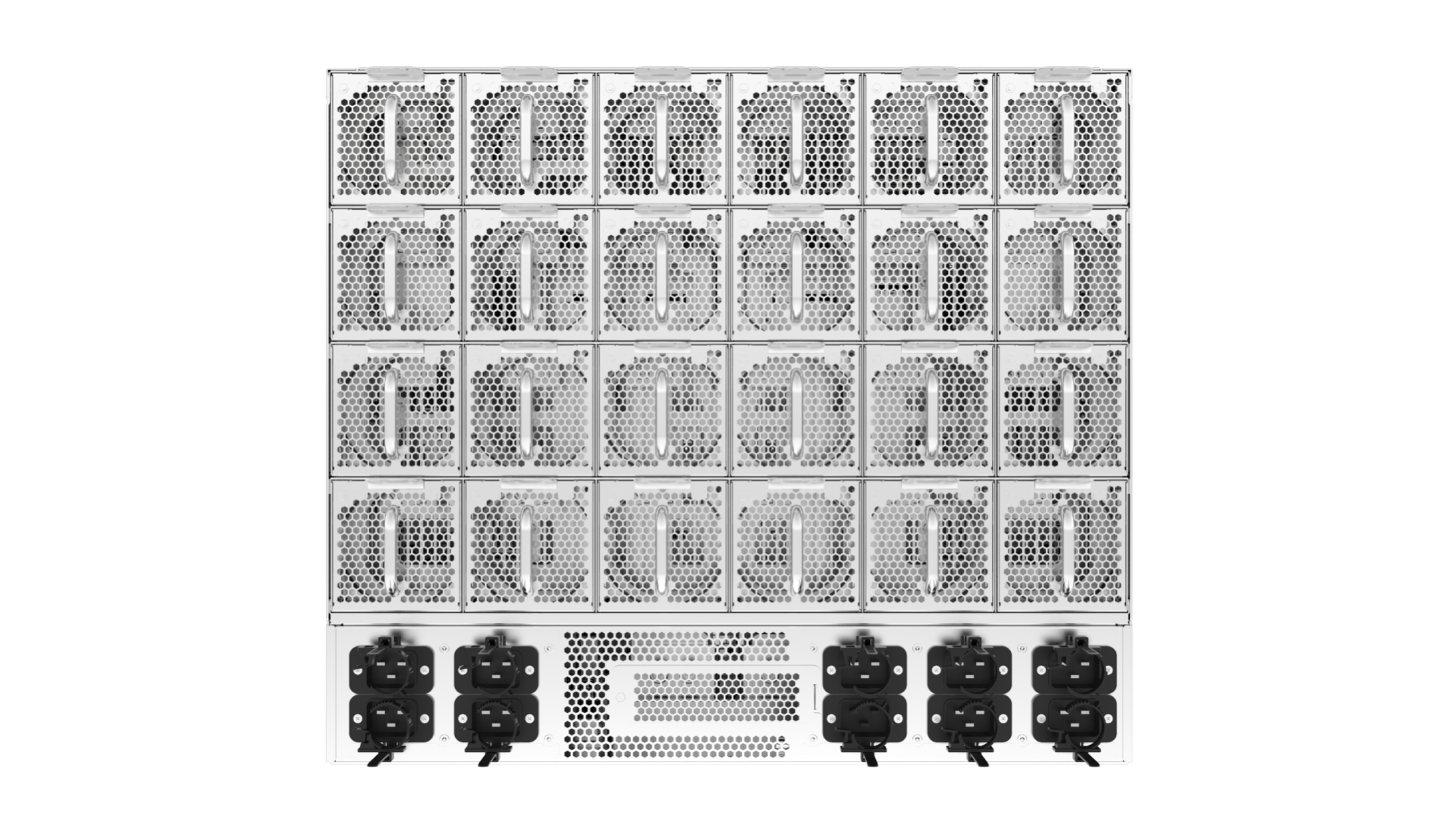

Fans	24 x 80*80mm for N+1 Cooling Redundancy
Certification	CE/FCC/RCM/BSMI/UL/IECEE CB
Operating Temperature	10°C to 35°C (50°F to 95°F)
Non-operating Temperature	-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity	8% to 85%RH
Non-operating Relative Humidity	5% to 95%RH
