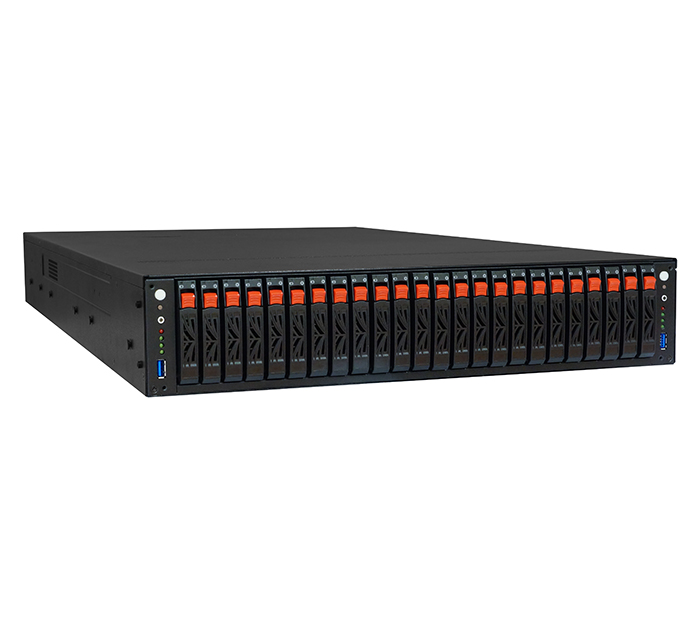

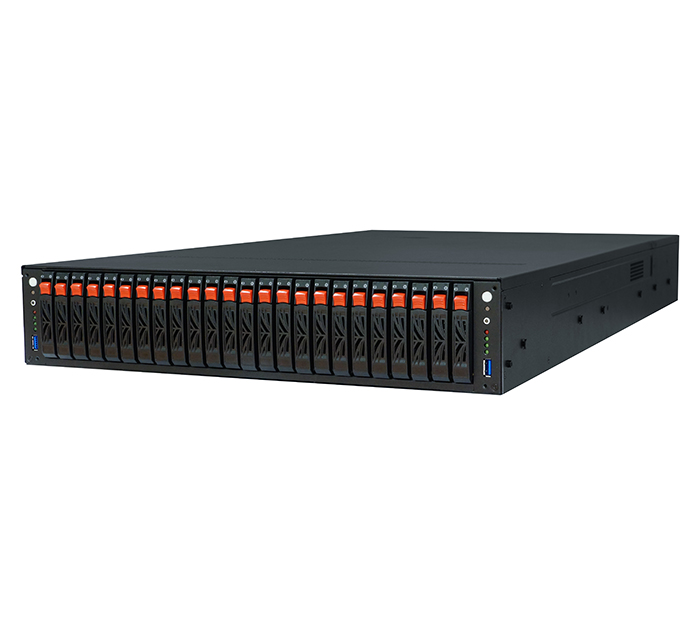

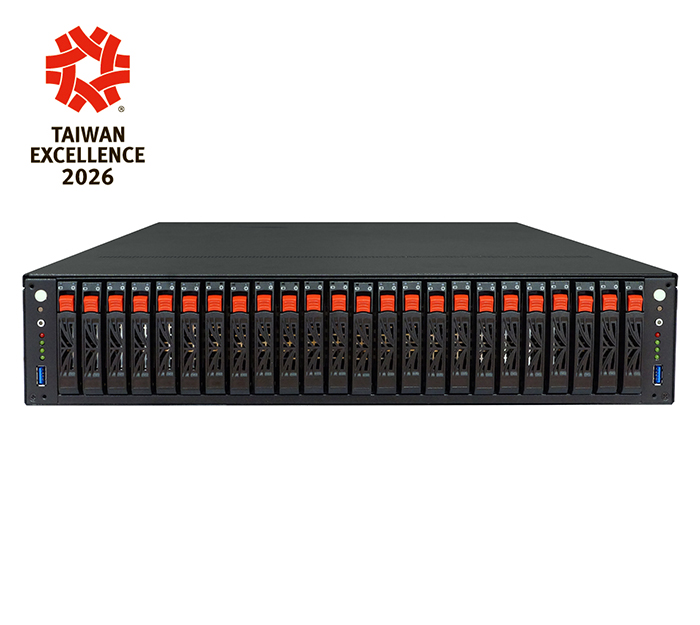

MIS-5131-2U2 is a 2U 2-Node HA server. Each node supports single Intel Xeon6 Processor (Granite Rapids-SP), 8x DDR5 slots, 24x 2.5” NVME SSDs, and 3x PCIe Gen5 x16 slots for high availability. There is optional dual width PCIe Gen5 x16 slot available for GPU/FPGA cards to achieve intensive AI workloads. It supports IPMI function to simplify local/remote management.
The dual node setup in a single chassis allows for seamless failover between nodes and the horizontal placement enables optimized thermal dissipation to allow CPU running with high TDP up to 350W. For redundant failover, the two nodes of MIS-5131 are interconnected via NTB (Non-Transparent Bridge). Combining with inter-node monitoring from BMC for high availability, MIS-5131 is suitable for mission critical storage applications.
1P per node

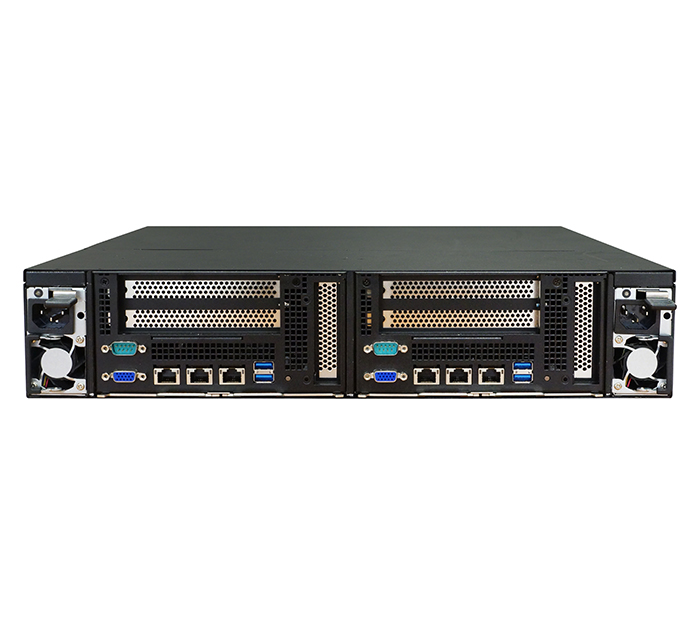

• 2x RJ45 10GbE ports
or
• 2x Single Width FHHL PCIe5 x16, 1x LP PCIe5 x16 slot
1x Power button with LED (Green)
1x Reset LED (Blue)
1x UID Button with LED (Blue)
1x Status LED (Red)
2x 10G LAN LED (Green)
1x IPMI mgmt LED (LED)
non-condensing
2x power cords
Console cable + RJ45 cable
