Value Network System
SCB-7910
产品特色
Support Single Intel® Atom® C3000R (Denverton Refresh) Processors, FCBGA1310
2x DDR4 (ECC) SO-DIMM memory, up to 2400 MHz
Support Intel QAT (by SKU)
6x 1GbE RJ45, 2x 10GbE SFP+, 1x Expansion Module bay
1x 2.5”/3.5” SATA, 1x mSATA, 1x M.2, 1x mPCIe, 1x eMMC 5.0
2x DDR4 (ECC) SO-DIMM memory, up to 2400 MHz
Support Intel QAT (by SKU)
6x 1GbE RJ45, 2x 10GbE SFP+, 1x Expansion Module bay
1x 2.5”/3.5” SATA, 1x mSATA, 1x M.2, 1x mPCIe, 1x eMMC 5.0

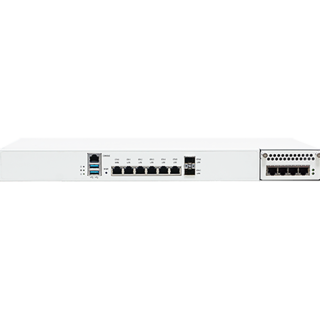

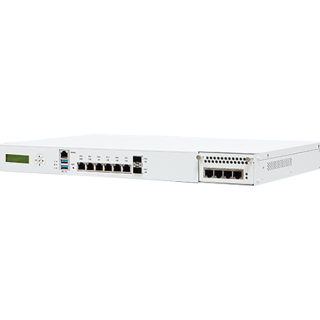

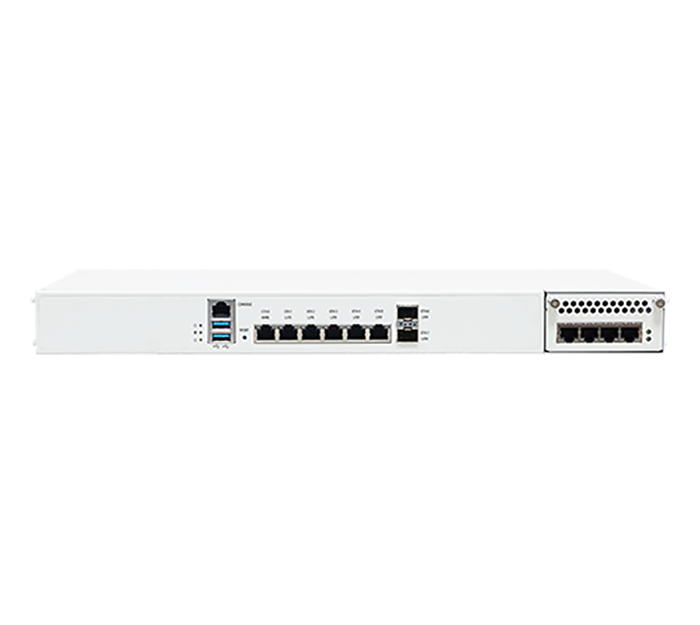

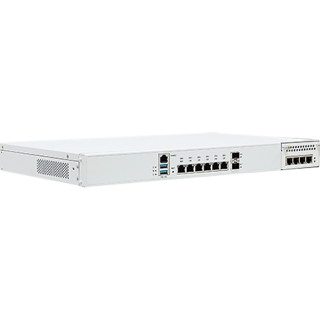

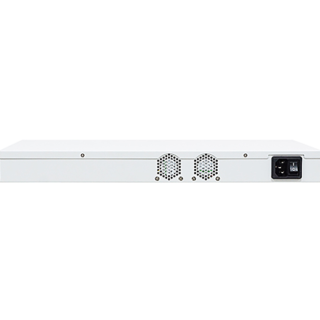

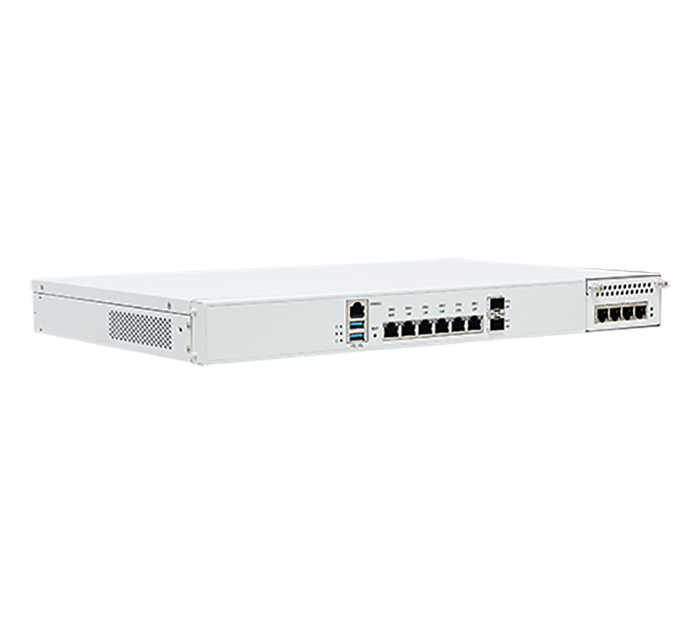

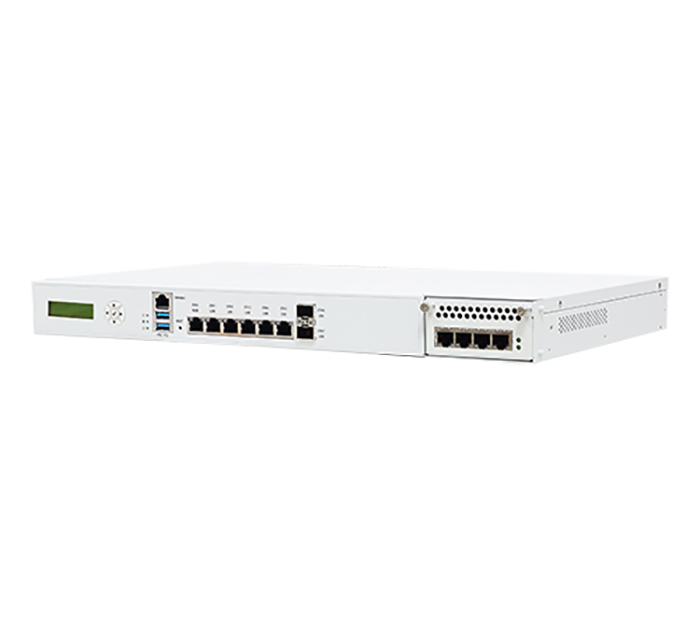

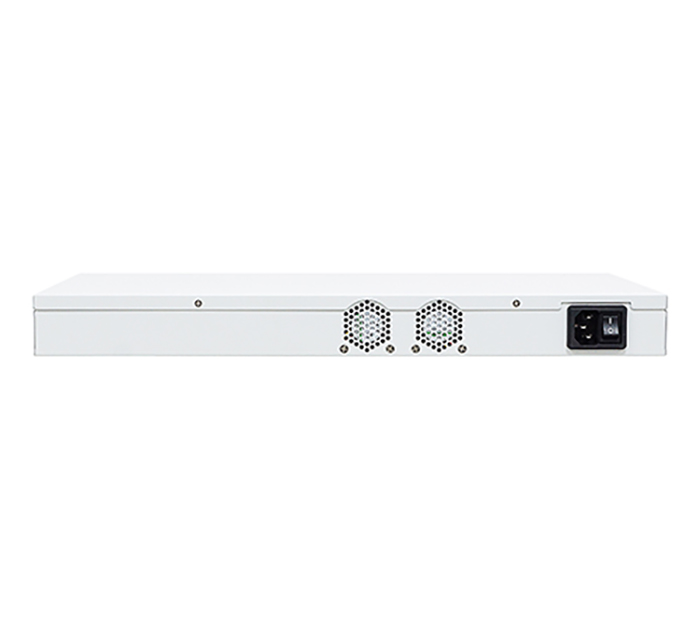

SCB-7910A 是一款 1U 机架式网络系统。它支持 Intel® Atom® C3000R（Denverton Refresh）处理器，并配备 QAT（加密和解密加速器）以实现安全的互联网连接。
SCB-7910A 支援 6x 1GbE RJ45 GbE 和 2x 10G SFP+ 埠。SCB-7910A 拥有 1x NIC 模组、1x mPCIe 和 1x M.2 插槽以供未来扩展，例如 1G/10G/WiFi/LTE/5G 模组。
SCB-7910A 可以连接 SATA/mSATA/eMMC 储存。客户可以选择合适的解决方案以满足他们的应用需求。
处理器系统
CPU
Support Intel Atom C3558R/C3758R Processor
BIOS
AMI® UEFI BIOS
记忆
科技
2x DDR4 2400MHz ECC SO-DIMM
Memory
Capacity
Max up to 32GB
扩展
上板扩展插槽
1x Network Expansion module
1x mPCIe
1x mPCIe
Expansion
Ethernet
GbE Ethernet
6x 1GbE RJ45
2x 10GbE SFP+
2x 10GbE SFP+
I/O
USB
2x USB 3.0
Serial
1x RJ45 Console port
Storage
SATA
1 x SATA III connectors
mSATA
1 x mSATA
M.2
1x M.2(B-key for LTE/5G module)
储存
电源
瓦特
65W Open Frame
机械与环境
形状因素
1U Rack-Mount
LED
1x Status LED
1x Power LED
1x HDD LED
1x Power LED
1x HDD LED
尺寸 (宽 x 深 x 高)
440 mm (W) x 268mm (D) x 44mm (H)
操作温度
0 ~ 40°C ( 32 ~ 104°F )
储存温度
-20 ~ 75°C (-4 ~ 167°F)
湿度
10 ~ 85% relative humidity, non-operating,
non-condensing
non-condensing
重量
3.5kg
认证
CE/FCC
