General Purpose Server

BIS-5222-2U

产品特色

Support Dual 3rd Gen Intel Xeon Scalable Processor (Ice Lake-SP), LGA4189
16x DDR4 RDIMM memory, up to 3200MHz
Support Intel QAT (by SKU)
1x 1GbE RJ45 IPMI port, 2x 10GbE RJ45 ports, 2x HHHL PCIe Gen4 x8 slots, 3x HHHL PCIe Gen4 x16 slot
12x 3.5'' Hot-swap SATA/SAS, 2x 2.5” SSD (optional), 1x M.2 (optional)
Optional Intel PFR / AEWIN TSB V2 module

加入比较加入咨询

下载

详细资料
规格
相关产品

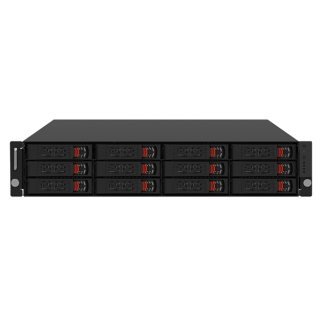

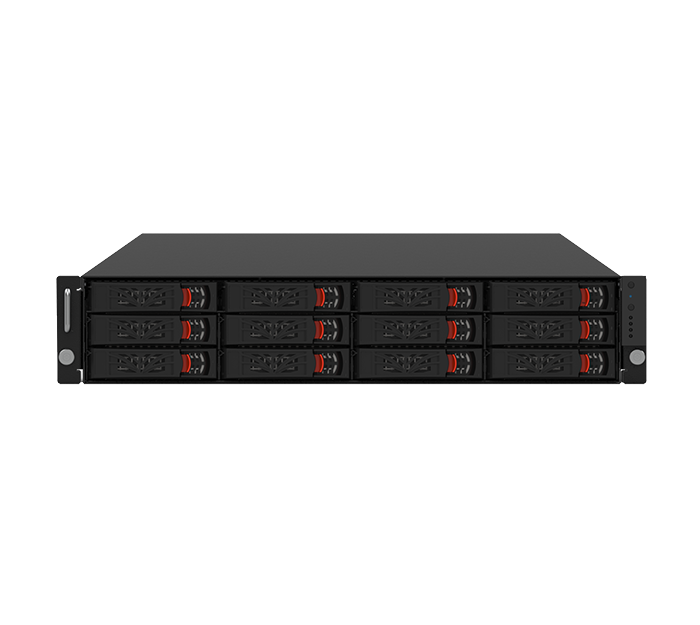

BIS-5222-2U is a 2U 12Bays Storage Server System with dual 3rd Gen Intel® Xeon® Scalable processor (Ice Lake/ Whitley platform). Refreshed CPU microarchitecture provides higher performance and 16 DIMMs (1DPC) to support high memory bandwidth & capacity. In addition to 12x 3.5” hot-swap storage bays, BIS-5222-2U also support 2x internal SSD or optional M.2. With total 64 lanes PCIe 4.0 (16GT/s) per CPU, BIS-5222 provides flexible and scalable I/O scalability including 5x PCIe Gen4 slots.

处理器系统

中央处理器

Dual 3rd Gen Intel® Xeon® Scalable Processor (Ice Lake-SP/ Whitley platform)

晶片组

Intel® C621A/C627A

系统总线

UPI Up to 3 links per CPU (11.2 GT/s)

BIOS

AMI 64Mb SPI BIOS

记忆

科技

Total 16 DIMMs (16x memory channels, 1x DIMMs per channel)
--DDR4 RDIMM up to 3200 MHz, 384GB per DIMM

Memory

Capacity

RDIMM up to 6TB

Ethernet

GbE Ethernet

2x RJ45 10 GbE ports, 1x RJ45 1GbE IPMI port

扩展

上板扩展插槽

3x HHHL PCIe Gen4 x16 slots
2x HHHL PCIe Gen4 x8 slots

Storage

SATA

12x 3.5” Hot-swap HDD

M.2

Maximum HSIO x2 for boot drive:
2x 2.5” SSD or
1x SATA M.2 (2280 M-key) + 1x 2.5” SSD or
1x PCIe x1 M.2 (2280 M-key) + 1x 2.5” SSD through multiplexer

I/O

USB

2x USB 3.0 (Rear I/O)
2x USB 3.0 (MB reserved PIN header)
4x USB 2.0 (MB reserved PIN header)

Serial

2x COM Port pin header

电源

瓦特

CRPS Redundant 800W

机械与环境

形状因素

2U Rackmount Server

LED

1x Power Button/LED
1x ID Button/LED
1x Reset Button
1x System error LED
1x IPMI LAN LED

尺寸 (宽 x 深 x 高)

440mm(W) x 640mm(D) x 88 mm(H)

操作温度

Operating: 0 ~ 40°C ( 32 ~ 104°F )

储存温度

-20 ~ 75°C (-4 ~ 167°F)

湿度

5 ~ 95% relative humidity, non-operating,
non-condensing

重量

21 kg

认证

CE/FCC

打包清单

1x BIS-5221A/B
Accessory Box
2x power cord(US), 1 x CD (Manual, Quick Installation Guide, Utilities & Drivers)
