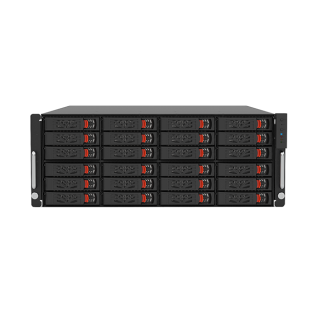

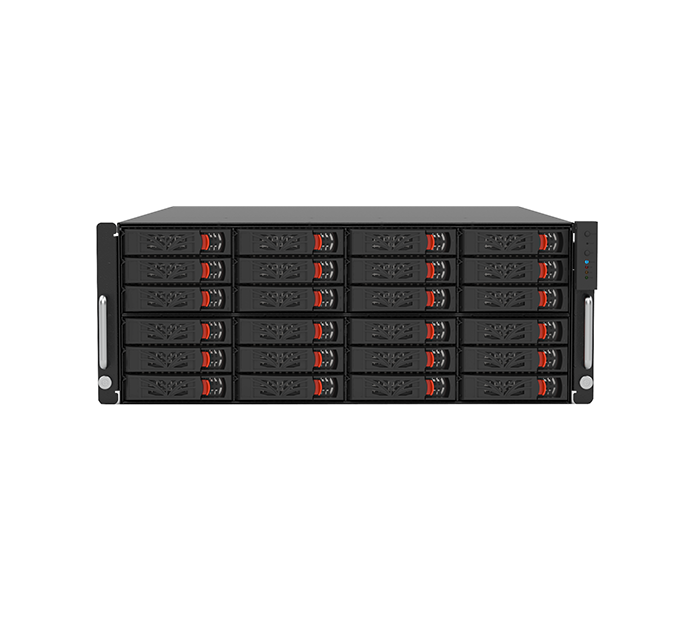

BIS-5222-4U 是一款 4U 24 槽存储伺服器系统，配备双 3 代 Intel® Xeon® 可扩展处理器（Ice Lake/Whitley 平台）。更新的 CPU 微架构提供更高的性能和 16 个 DIMM（1DPC）以支持高记忆体带宽和容量。除了 24 个 3.5 吋热插拔存储槽外，BIS-5222-4U 还支持 2 个内部 SSD 或可选的 M.2。每个 CPU 总共有 64 条 PCIe 4.0 通道（16GT/s），BIS-5222 提供灵活且可扩展的 I/O 扩展性，包括 5 个 PCIe Gen4 插槽。
--DDR4 RDIMM up to 3200 MHz, 384GB per DIMM
2x HHHL PCIe Gen4 x8 slots
2x USB 3.0 (MB reserved PIN header)
4x USB 2.0 (MB reserved PIN header)
2x USB 3.0 (MB reserved PIN header)
4x USB 2.0 (MB reserved PIN header)
1x ID Button/LED
1x Reset Button
1x System error LED
1x IPMI LAN LED
non-condensing
Accessory Box
2x power cord(US), 1 x CD (Manual, Quick Installation Guide, Utilities & Drivers)
BIS-5221
2U Rackmount Dual 3rd Gen Intel® Xeon® Processor Scalable Processors (Ice Lake-SP / Whitley platform) and Intel® C621A/C627A PCH Hybrid Storage Server, support 32x DDR4(up to 3200MHz) per system, supporting 2x OCP 3.0 Network Cards, 12x bays 3.5” Hot-Swap SAS/SATA HDD, IPMI, USB 3.0/2.0, 2x 1GbE, 1 Console, 2x M.2, Redundant PSU.
BIS-5222-2U
2U Rackmount Dual 3rd Gen Intel® Xeon® Scalable Processor (Ice Lake-SP/ Whitley platform) Storage Server, supporting 16x DDR4 (up to 3200MHz), 12x 3.5” Hot-Swap HDD, 5x PCIe Gen4 slots, 2x 2.5” SSD (optional), 1x 1GbE IPMI, 2x USB 3.0/2.0, 2x 10GbE, 1x VGA, 1x M.2 (optional)
BIS-5121-1U
1U 机架式单一第三代英特尔® 至强® 可扩展处理器（冰湖-SP/惠特利平台）储存伺服器，支援 8x DDR4（最高 3200MHz），4x 3.5 吋热插拔 HDD，2x PCIe Gen4 插槽，2x 2.5 吋 SSD（可选），1x 1GbE IPMI，2x USB 3.0/2.0，2x 10GbE，1x VGA，1x M.2（可选）
BIS-5121-2U
2U Rackmount Single 3rd Gen Intel® Xeon® Scalable Processor (Ice Lake-SP/ Whitley platform) Storage Server, supporting 8x DDR4 (up to 3200MHz), 12x 3.5” Hot-Swap HDD, 3x PCIe Gen4 slots, 2x 2.5” SSD (optional), 1x 1GbE IPMI, 2x USB 3.0/2.0, 2x 10GbE, 1x VGA, 1x M.2 (optional)
BIS-5132-2U
BIS-5132-2U 是一款 2U 通用伺服器，配备单颗 Intel Xeon 6 可扩展处理器（Granite Rapids-SP/Sierra Forest-SP）、8x DDR5 6400MHz RDIMM、8x PCIe 插槽、12x 热插拔 HDD/SSD、2x 2.5 吋热插拔 NVMe SSD、1x 1GbE MGMT RJ45、2x 10GbE RJ45、1x USB 3.1、1x 控制台、2x M.2
BIS-5231-2U
BIS-5231-2U is a 2U General Purpose Server with Dual Intel Xeon 6 Scalable Processors (Granite Rapids-SP/Sierra Forest), 16x DDR5 6400MHz RDIMM, 8x PCIe Gen5 slots, 1x OCP 3.0 PCIe Gen5 slot, 12x hot-swapable SAS/SATA/NVMe, 1x 1GbE IPMI, RJ45, 4x 10G RJ45, 2x USB 3.1, 1x Console, 1x VGA, 2x M.2
