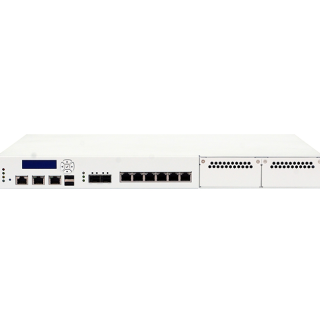

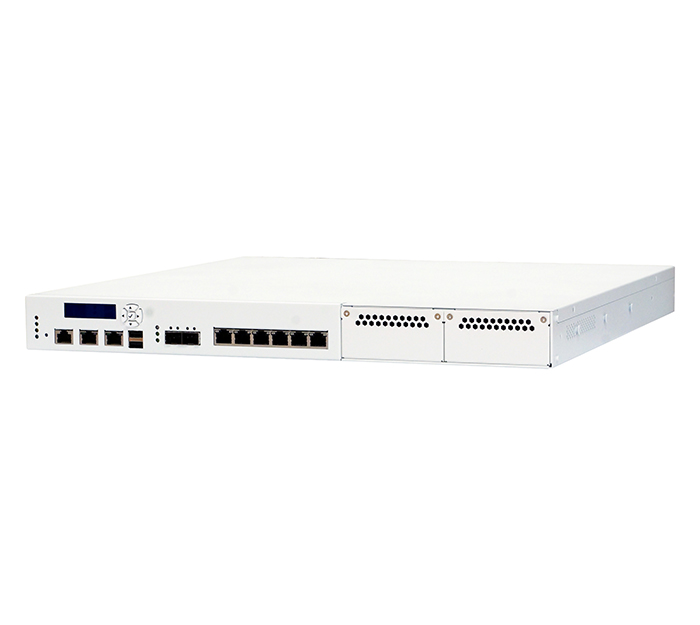

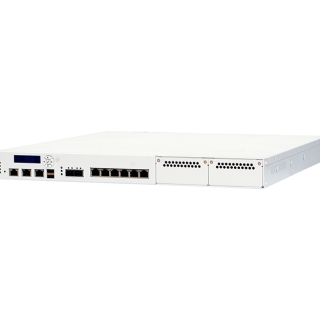

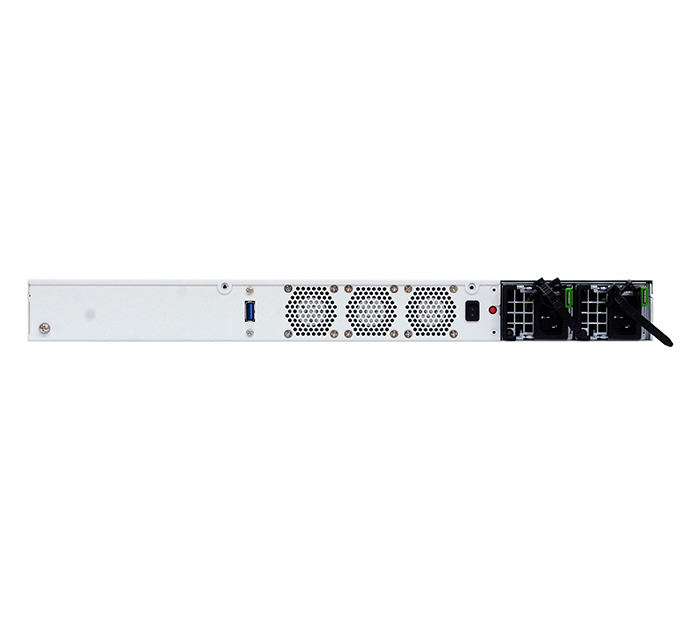

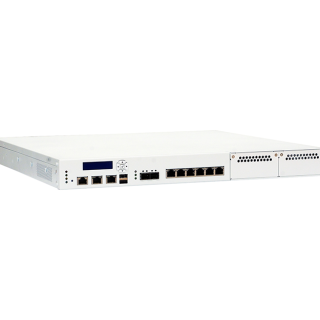

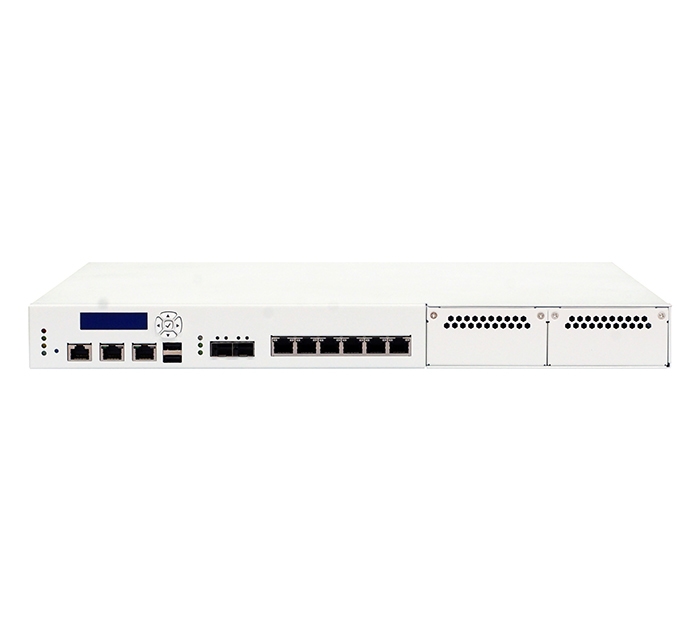

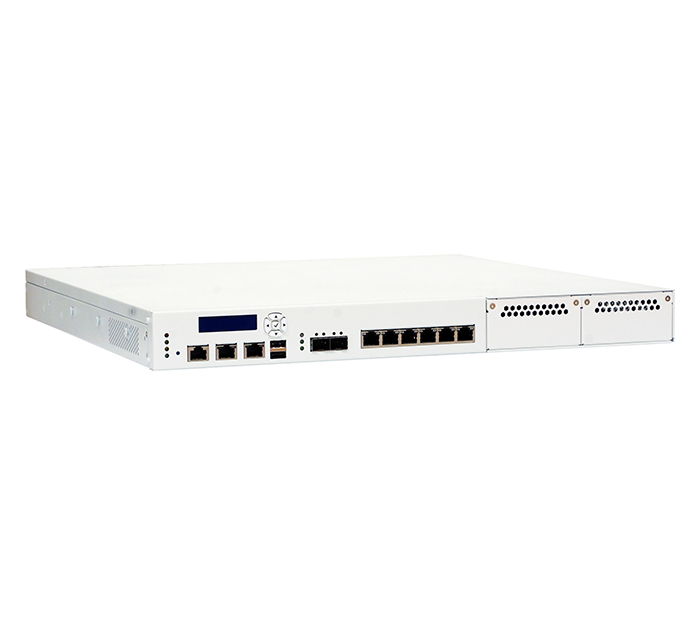

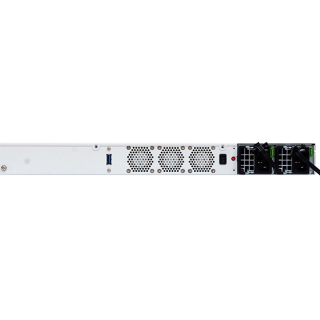

Mainstream Network System

SCB-1741

产品特色

Support Single 12th/13th Gen Intel Core Processor (Alder Lake-S/Raptor Lake-S), LGA1700
4x DDR4 UDIMM memory, up to 3200MHz
10x 1GbE RJ45 ports or 2x 1GbE SFP ports, 2x Expansion Module bays
2x 2.5" SATA, 1x mSATA, 1x M.2 M Key

加入比较加入咨询

下载

详细资料
规格
相关产品

SCB-1741 是一款 1U 机架式硬体网路系统，支援单颗 Intel® Alder Lake-S (第 12 代核心) 和 Raptor Lake-S (第 13 代核心) 处理器，搭配 Intel® R680E PCH。这款 1U 主流网路设备拥有 4 个 DDR4 UDIMM 插槽，支援 4x DDR4 UDIMM (最高可达 3200 MHz)，最大记忆体容量可达 128GB。
SCB-1741 拥有两个板载 PCIe x8 插槽，支持多种以太网模组以实现灵活的网际网路连接配置，例如 10/40/100 Gigabit 光纤网卡模组、功能启用（或未启用）的千兆铜纤网卡模组，通过这种灵活性，可以满足客户的各种需求。
强大的 I/O 元素包括两个管理以太网端口、一个控制台端口、两个 USB 端口、PWR/HDD/2x GPO/3x Bypass 的 LED 灯。此外，SCB-1741 还支持 4x SATA III、1x mSATA 和 1x NVMe M.2 用于网络存储应用。

处理器系统

CPU

Intel® 12th/13th Gen Core™ (Alder Lake-S/Raptor Lake-S) Processors, LGA1700

晶片组

Intel® R680E PCH

BIOS

AMI UEFI BIOS

记忆

科技

Total 4 x DIMMs (2 channels & two DIMM per channel)
-- ECC DIMM：Depends on CPU type
-- DIMM：DDR4 3200MHz, up to 128GB

Memory

Capacity

Max Up to 128GB

扩展

上板扩展插槽

1x PCIe Gen4 x8 slot
1x PCIe Gen3 x8 slot

Expansion

Ethernet

GbE Ethernet

2x RJ45 management ports
6x RJ45 GbE ports
2x SFP or RJ45 GbE ports

LAN 绕过

3 Pairs Gen3

I/O

USB

2x USB2.0 type A connector (via R642)
2x USB3.0 pin header

Serial

1x RJ45 type connector (via R642)
1x COM pin header

Storage

SATA

4x SATA 3 connectors

mSATA

1x mSATA socket

M.2

1x NVMe M.2

储存

电源

瓦特

Redundant 300W Power

机械与环境

形状因素

1U rack-mount

LED

1x Power LED (Green)
1x HDD LED (Red)
2x Status LED (Green/Yellow via programmable GPIO)
3x Bypass LED (Green)

尺寸 (宽 x 深 x 高)

440mm(W) x 450 mm(D) x 44mm(H)

操作温度

Operating: 0 ~ 40°C ( 32 ~ 104°F )

储存温度

-20 ~ 75°C (-4 ~ 167°F)

湿度

10 ~ 85% relative humidity, non-operating,
non-condensing

重量

10 kg

认证

CE/FCC
