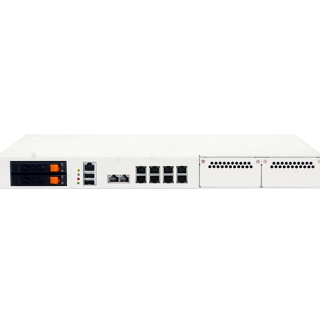

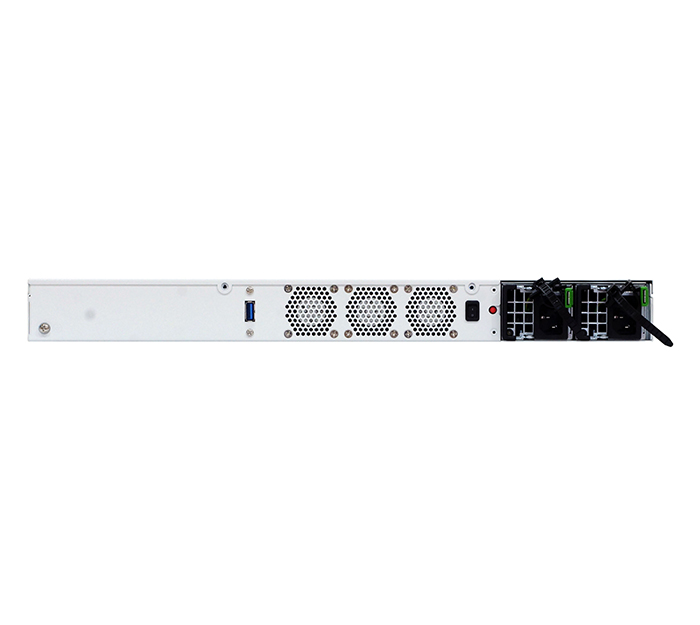

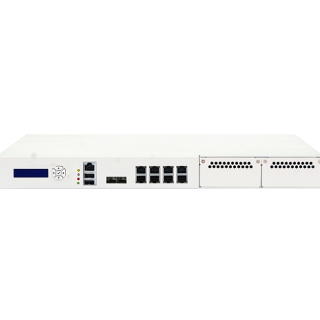

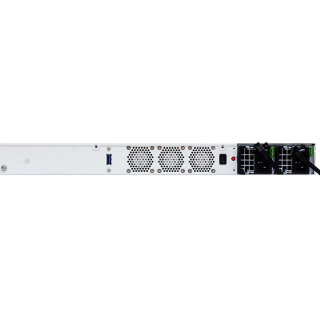

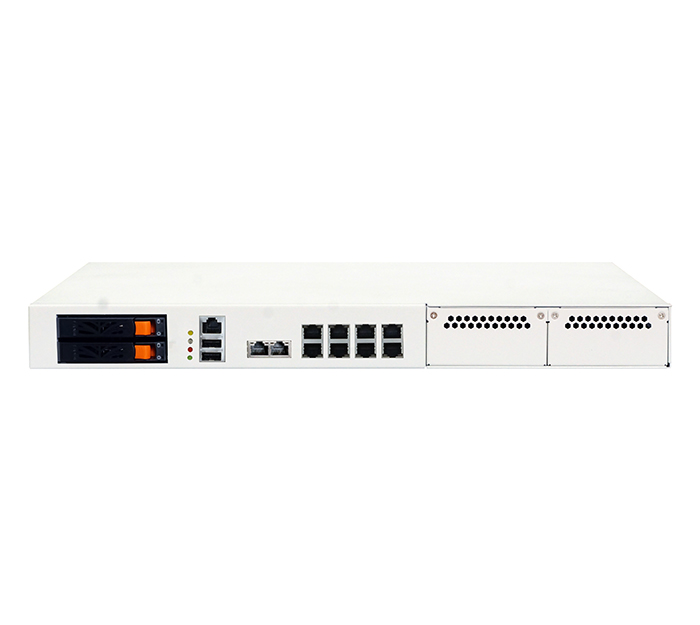

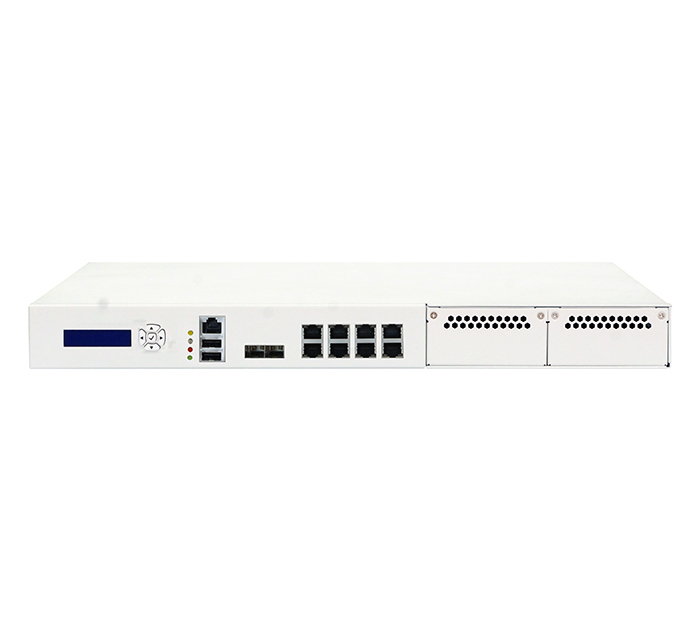

The SCB-1742 is a 1U Rack-Mount hardware networking system supporting Single AMD AM5 EPYC Embedded 4005 and Ryzen 9000/7000 Series Processor with AMD B650 PCH. The 1U Mainstream Network Appliance features 4 DDR5 UDIMM slots, which supports 4x DDR5 UDIMM up to 5600 MHz and the maximum memory capacity is up to 192GB. Featuring two PCIe x8 slots, the SCB-1742 supports multiple Ethernet modules for flexible internet connection configuration, such as 1/10/40/100 Gigabit fiber and Gigabit Copper/Fiber with or without BYPASS function. The rich IO elements include four 2.5GB, 4x 1GbE RJ45, 2x RJ45 1GbE or 2x 1GbE SFP, a console port, two USB ports, and LEDs for PWR/HDD/2x GPO/3x Bypass. In addition, the SCB-1742 also supports 2x hot-swappable 2.5” SSD/HDD and 1x PCIe4.0 x2 M.2 slots for network storage application.
-- ECC DIMM：Depends on CPU type
-- DIMM：DDR5 5200MHz, up to 128GB
4x RJ45 GbE ports
2x SFP or RJ45 GbE ports
2x USB3.0 pin header
1x COM pin header
1x HDD LED (Red)
1x Status LED (Amber via programmable GPIO)
1x Bypass LED (Amber)
non-condensing
SCB-1947
The SCB-1947 is a 2U Rackmount Single 4th Gen AMD EPYCTM 8004 Series Processor (Siena) Network Appliance, support 12x DDR5 RDIMM up to 1.152TB (96GB Per DIMM), 8x PCIe 5 x 8 slot for Network Expansion Module, 1x 2.5” Internal SATA HDD, IPMI, 2 USB, 2x 1GbE, 1x Console, miniPCIe, mSATA, 2 x M.2 2280, BMC, Redundant PSU
