Mainstream Network System

SCB-1830

产品特色

Support Intel® Xeon® D-2100(Skylake-DE) processors
4-channel DDR4 ECC/Registered 2400/2666 MHz memory, up to 128GB
Support Intel® QAT(by SKU)
10x RJ45 GbE and 4x SFP+ ports, support 2x NIC expansion modules
1x riser card for PCIe x8 expansion slot to Rear
2x 2.5” HDD/SSD, 1x mSATA
Support IPMI
Support Dying GASP by BMC(IPMI Port)

加入比较加入咨询

下载

详细资料
规格
相关产品

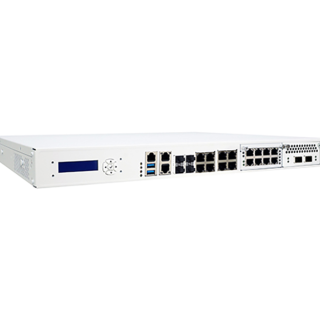

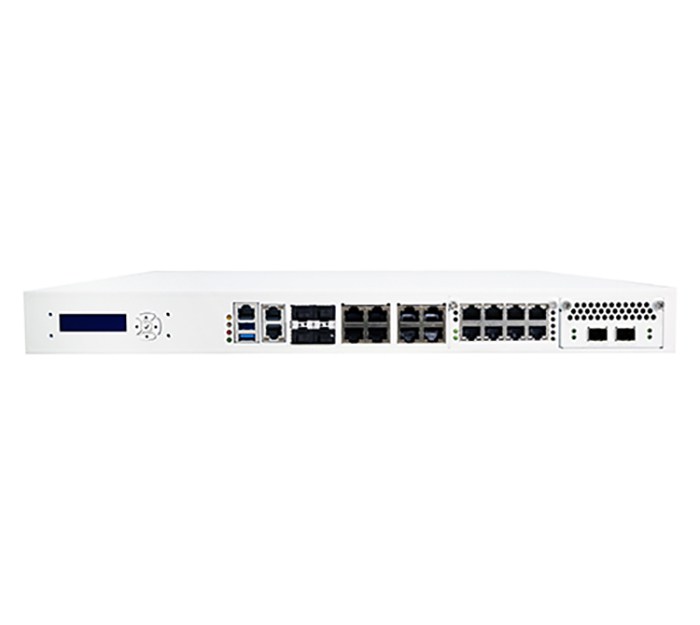

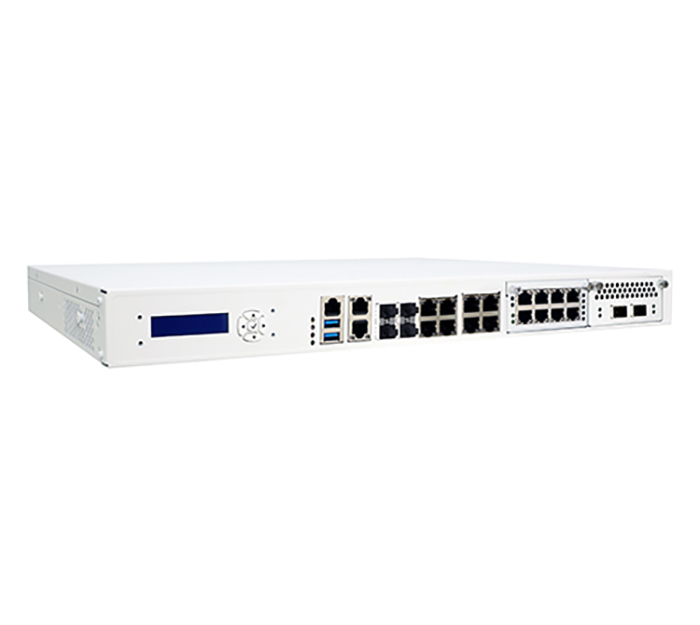

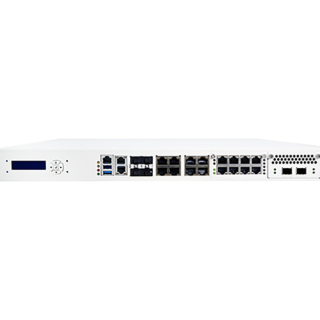

The SCB-1830 is a 1U rack-mounted hardware platform designed for network service applications.

Built with Intel® Embedded IA components with warranty of longevity, the SCB-1830 Support single Intel® 14nm Skylake-D Xeon D-2100 Series processors. The platform supports four DDR4 2400/2666 MHz Registered Buffer RDIMM or LRDIMM sockets with max capacity up to 128 GB. In order to provide the best network performance and best utilization, the powerful storage interfaces include two 2.5" SATA HDD and one mSATA. The SCB-1830 also supports two PCIe x8 expansion slot and affords 2 GbE and max 30 GbE Ethernet ports on the front-panel. The front panel also has one USB 3.0 ports, one RJ-45 console port and LED indicators that monitor power and storage device activities for local system management, maintenance and diagnostics. In addition, the SCB-1830 is RoHS, FCC and CE compliant.

处理器系统

CPU

Intel® Skylake-D Xeon® D-2100 Series, FCBGA2518

晶片组

SOC Integrated

BIOS

AMI 64Mb SPI BIOS

记忆

科技

4x channel, DDR4 2400/2666 MHZ ECC, Registered Buffer RDIMM or LRDIMM

Memory

Capacity

Up to 128GB

扩展

上板扩展插槽

On board IPMI with VGA support
2x PCIe x8 slot

Expansion

Ethernet

GbE Ethernet

2x RJ45 GbE ports（IPMI / MGMT Port）
8x RJ45 Gbe
4x 10G SFP+

I/O

USB

2x external USB 3.0 port(Front Side)
1x internal USB 3.0(Rear Side)

Serial

1x RJ45 Console port (COM1)

Storage

SATA

2x 2.5” SATA HDD

mSATA

1x mSATA (Reserve CF socket design, Option)

储存

电源

瓦特

1U Redundant 300W ATX Power Supply

机械与环境

形状因素

1U rack-mount

LED

1x Power LED (Green)
1x HDD LED (Red)
2x Status LED (Green/Yellow via programmable GPIO)

尺寸 (宽 x 深 x 高)

440mm (W) x 450mm (D) x 44mm (H)

操作温度

Operating: 0 ~ 40°C ( 32 ~ 104°F )

储存温度

-20 ~ 75°C (-4 ~ 167°F)

湿度

10 ~ 85% relative humidity, non-operating,
non-condensing

重量

10 kg

认证

CE/FCC
