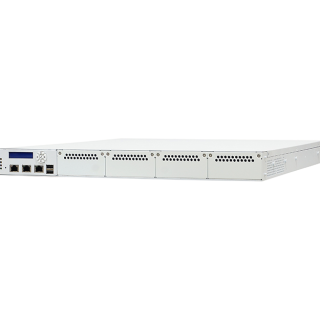

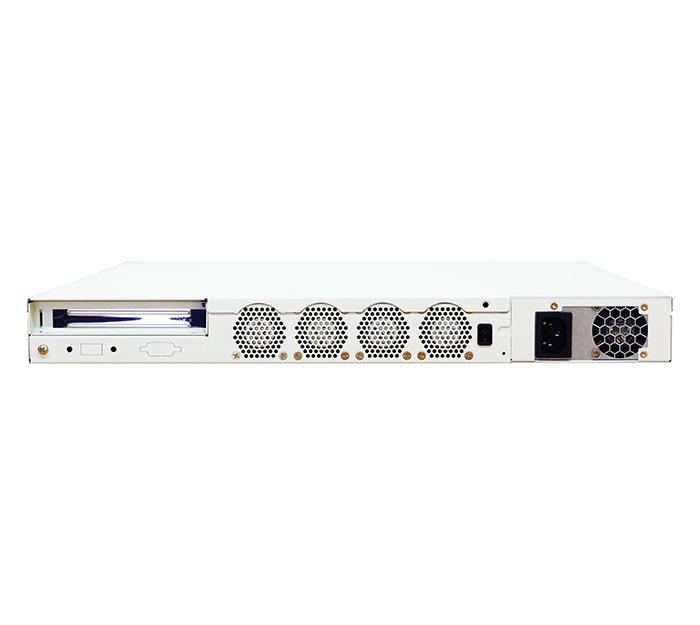

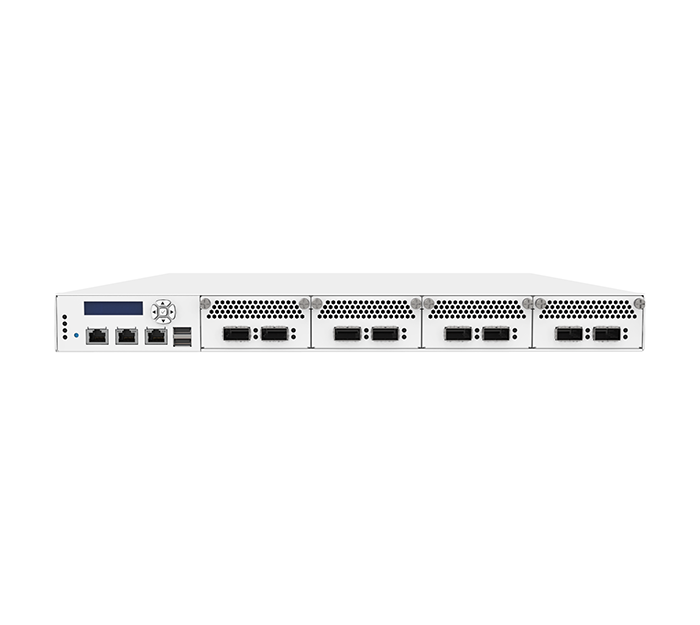

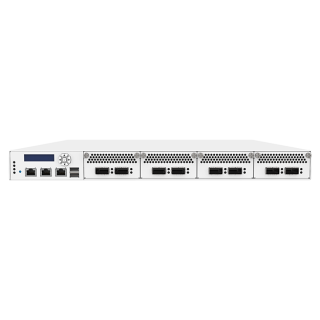

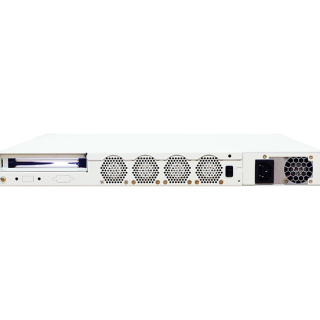

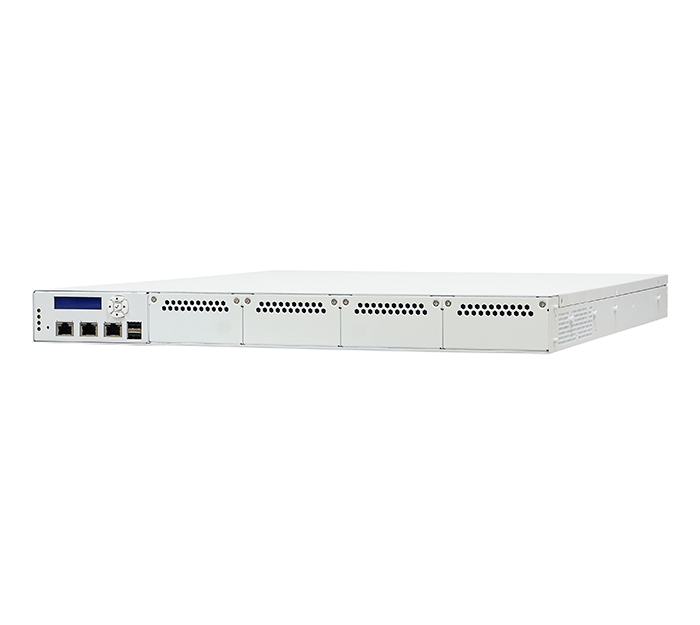

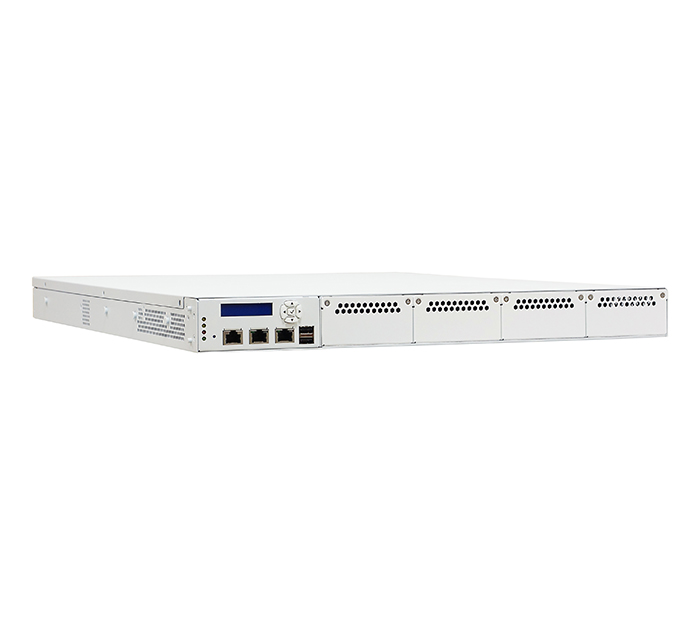

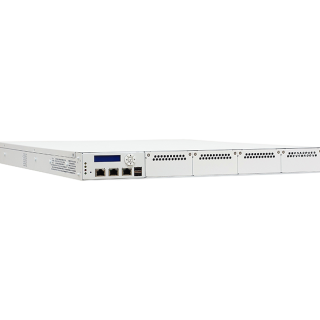

SCB-1836

The SCB-1836 is a 1 U Rack-Mount high-performance networking system, supporting 12th/13th/14th Gen Intel Core Processor and Intel Core (BTL-S) Processor (Alder Lake-S/Raptor Lake-S/ Raptor Lake Refresh/Bartlett Lake-S) with increased CPU cores and threads (up to 24 cores/32 threads) for outstanding performance. Also, it is with increased Intel Smart Cache (L3) of up to 36MB.

SCB-1836 supports total four DDR5 DIMM (two channels and 2 DIMM per channel), up to 5600MHz and 128GB to enable faster computing. As for the expansion slots, it supports the latest PCIe Gen 5 for superior performance. Combining with PCIe Gen 4 slots to have total 4x expansion slots (2x PCIe Gen 5 & 2x PCIe Gen 4 slots), the system can build the exact configurations required per cases effortlessly as it is also compatible with AEWIN various NIC cards for 1/10/25/40/100 Gigabit fiber or copper with optional Bypass function.

In addition to the great capability and function mentioned, SCB-1836 supports DPDK to accelerate packet processing to benefit the system with higher efficiency. Furthermore, it is featured with optional IPMI with OT016 for monitoring and better managing the system intelligently. To ensure the networking security, the system is with optional TPM2.0 with OT004B to protect its start-up process. With all the features mentioned, SCB-1836 is perfect as a performant network appliance for diverse applications.
