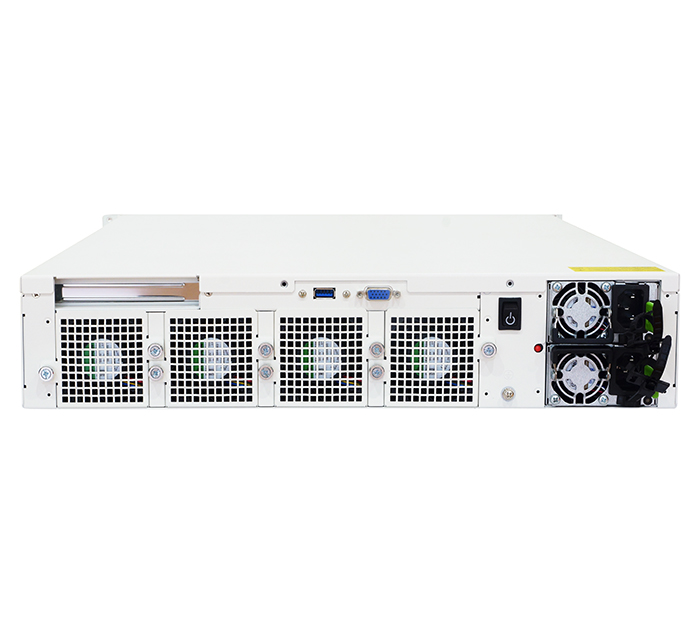

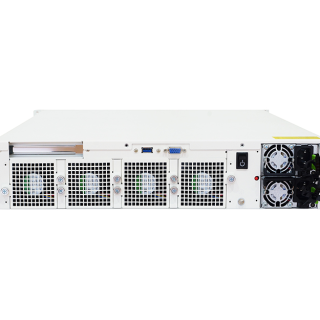

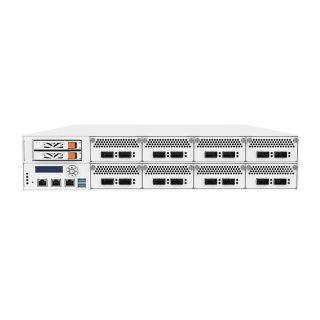

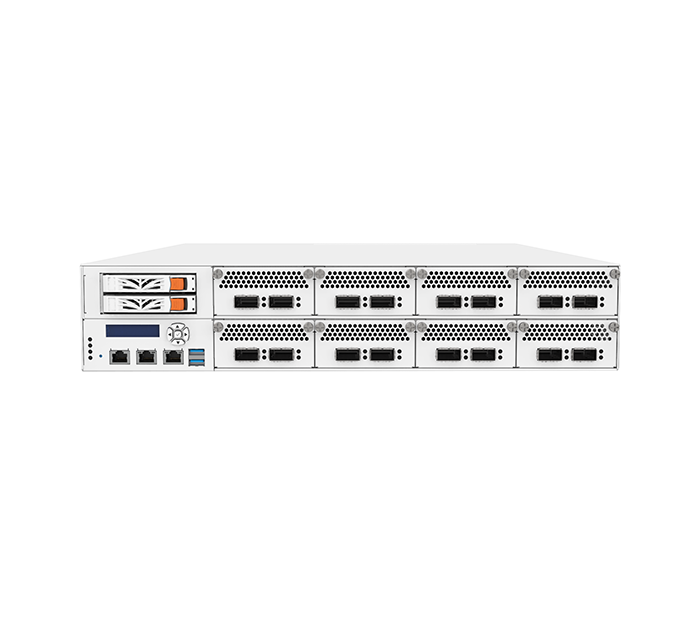

Performance Network Appiance

SCB-1953

产品特色

支援单插槽 Xeon 6 可扩展处理器（Granite Rapids-SP/Sierra Forest），LGA-4710
8个 DDR5 R-DIMM 记忆体插槽，最高可达 6400MHz
支援 Intel QAT
8个 PCIe Gen5 扩展模组插槽
2个 25GbE SFP28，1个 10GbE RJ45 管理，1个控制台 RJ45
2 x 2.5” SATA，2个 M.2

加入比较加入咨询

下载

详细资料
规格
相关产品

The SCB-1953-2U is a 2U Rack-Mount hardware networking system. Supporting single Inte Xeon 6 Scalable Processor (Granite Rapids-SP/Sierra Forest), the new generation platform provides remarkable performance with increased CPU cores up to 86 P-cores or 144 E-cores.

The SCB-1953-2U supports 8x channels DDR5 RDIMM with up to 6400 MHz and maximum memory capacity is up to 2TB. With 88 PCIe5.0 lanes supported by single Intel Xeon 6 CPU, the SCB-1953-2U support up to 8x PCIe Gen 5 x8 slots for Network Expansion Modules for flexible configuration, such as 1/10/40/100/200 Gigabit fiber, Gigabit Copper/Fiber with or without BYPASS function. The SCB-1953-2U Series also provides outstanding flexibility to change the 2x PCIe slots to 1x PCIe x16 slot for standard PCIe form factors which are suitable for dual-width accelerator cards to enable AI workloads. It can support 400GbE NIC card installed such as Mellanox PCIe5.0 NIC.

The strong IO elements of SCB-1953-2U include 10GbE management port, 2x 25GbE SFP28 ports, a console port, 2x USB3.1 ports, LEDs for power/HDD/2xGPIO. In addition, the SCB-1953-2U also supports two front hot-swappable 2.5” SATA HDD/SSD and two PCIe4.0 M.2 slots for diverse applications.

处理器系统

CPU

Single Intel Xeon 6 Scalable Processor (Granite Rapids-SP/Sierra Forest)

BIOS

AMI® UEFI BIOS

记忆

科技

8x DDR5 RDIMM Slots, up to 6400MHz

Memory

Capacity

Up to 2TB

扩展

上板扩展插槽

8x PCIe Gen5 x8 slots for NIC modules

Expansion

Ethernet

GbE Ethernet

2x 25GbE SFP28, 1x 10GbE RJ45 MGMT ports

I/O

USB

External: 2 USB3.1 at Front
Internal: 2 USB3.1 Pin Header

Serial

1x RJ45 Console Port (COM1),
2 Pin Header (COM2/COM3)

Storage

SATA

2x 2.5” SSD/HDD
Internal SATA Header : 2x SATA Connector

M.2

2x M.2 2280 socket

储存

电源

瓦特

1+1 CRPS 1600W Redundant power supply

机械与环境

形状因素

2U Rackmount

LED

1x Power LED (Green)
1x HDD LED (Red)
2x Status LED (Green/Yellow via programmable GPIO)

尺寸 (宽 x 深 x 高)

440mm(W) x 600 mm(D) x 88mm(H)

操作温度

Operating: 0 ~ 40°C ( 32 ~ 104°F )

储存温度

-20 ~ 75°C (-4 ~ 167°F)

湿度

5 ~ 95% relative humidity, non-operating,
non-condensing

重量

TBD

认证

CE/FCC
