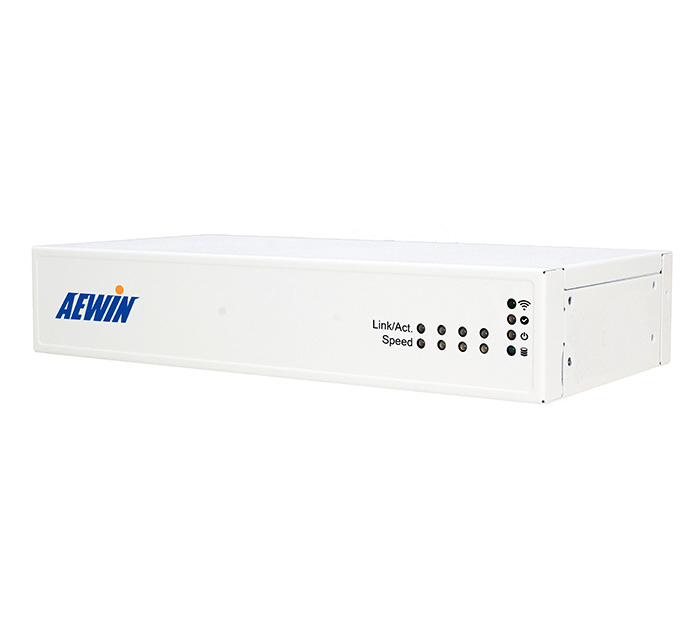

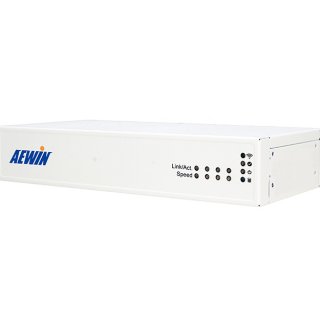

Entry Network System
SCB-6909
产品特色
Compact Fanless Network System
Ideal Noiseless System for Silence environments Use
Intel Celeron N3350 and Atom x5-E3930 (Apllo Lake)
DDR3L 1866MHz memory, max support 2GB Max 4 RJ45 GbE ports
eMMC flash, support up to 64GB (default 8GB)
Expansive I/O with two USB 2.0, one mini-PCIe socket and one Console port
Ideal Noiseless System for Silence environments Use
Intel Celeron N3350 and Atom x5-E3930 (Apllo Lake)
DDR3L 1866MHz memory, max support 2GB Max 4 RJ45 GbE ports
eMMC flash, support up to 64GB (default 8GB)
Expansive I/O with two USB 2.0, one mini-PCIe socket and one Console port

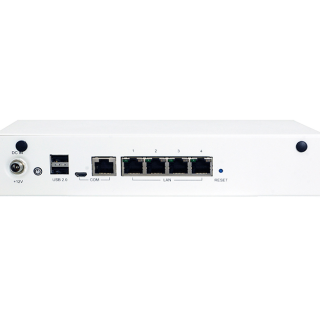

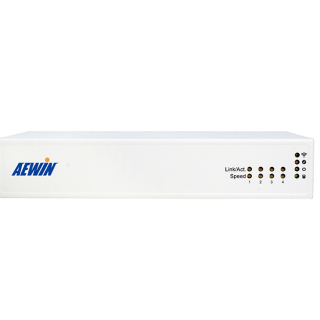

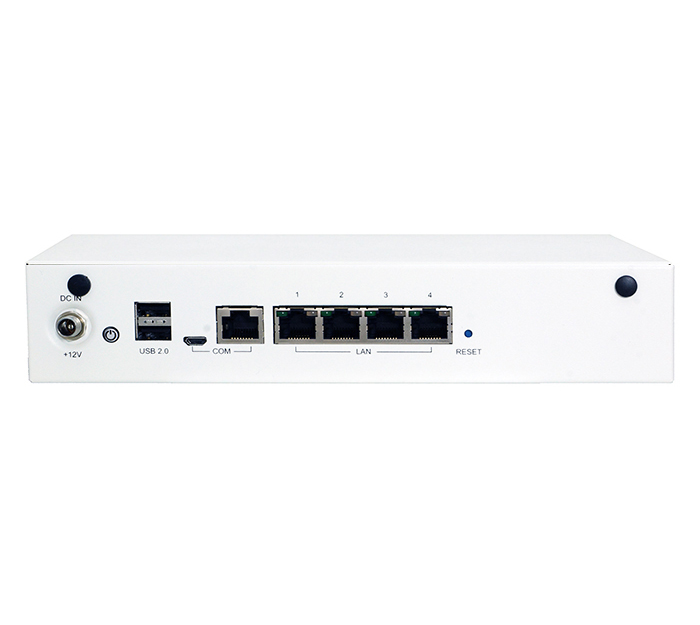

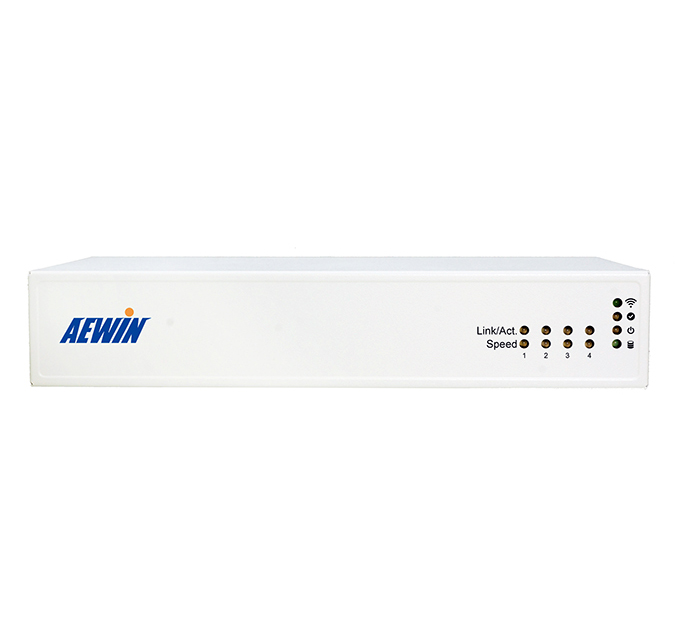

SCB-6909是一款无风扇桌面硬体平台，专为网路服务应用而设计，是一个适合静音环境使用的无噪音系统。它採用Intel®嵌入式IA元件，具有长期保固，支持低电压的Intel® AtomTM / Celeron® Apollo Lake-I处理器。SCB-6909支持2GB的板载DDR3L记忆体。为了提供最佳的网路性能和最佳的利用率，储存介面包括eMMC，并在后面板提供四个铜GbE接口。后面板还有两个USB 2.0接口、一个RJ-45控制台接口或微型USB控制台接口。前面板有LED指示灯，用于监控电源和储存设备的活动，以便进行本地系统管理、维护和诊断。此外，SCB-6909支持一个迷你卡插槽以便扩展。该网路系统符合RoHS、FCC和CE标准。
处理器系统
CPU
Intel Celeron N3350 and Atom x5-E3930 (Apllo Lake)
BIOS
AMI® UEFI BIOS
记忆
科技
Un-buffered and Non-ECC DDR3L 1600/1866MHz onboard memory
Memory
Capacity
Onboard 2GB
扩展
Expansion
Ethernet
GbE Ethernet
4x Copper GbE ports, Intel® I211AT, PCIe x 1
LAN 绕过
1x Pair
I/O
USB
2x external USB 2.0 ports
Serial
1x RJ45 Console port (COM1)
1x micro-USB Console port (USB)
1x micro-USB Console port (USB)
Storage
SATA
2.5" SSD(Option)
eMMC
eMMC 5.1 8GB, up to 64GB
储存
电源
瓦特
24W power adapter
机械与环境
形状因素
Desktop
LED
WiFi LAN LED (Green)
Status/bypass (Green/Red)
One Power LED (Green/Red)
One HDD LED (Blue)
4x pairs LEDs for 4x Ethernet ports speed and Active/Link
Status/bypass (Green/Red)
One Power LED (Green/Red)
One HDD LED (Blue)
4x pairs LEDs for 4x Ethernet ports speed and Active/Link
尺寸 (宽 x 深 x 高)
232mm (W) x 115mm (D) x 44mm (H)
(9.1”W x 4.5” D x 1.7” H)
(9.1”W x 4.5” D x 1.7” H)
操作温度
0 ~ 40°C ( 32 ~ 104°F )
储存温度
-20 ~ 75°C (-4 ~ 167°F)
湿度
10 ~ 85% relative humidity, non-operating,
non-condensing
non-condensing
重量
2kg
认证
CE/FCC
