SCB-6911
Ideal Noiseless System for Silence environments Use
Intel® Apollo Lake Processor, support Celeron N3350 or Atom x5-E3940
DDR3L 1600MHz memory, max support 8GB
4 x RJ45 & 1x Fiber GbE ports
eMMC 5.0 flash, support up to 64GB (default 32GB)
SATA3 for HDD/SSD
Expansive I/O with 2x USB 3.0, 1x mini-PCIe socket and 1x RJ45 Console port
The SCB-6911 is a fanless desktop hardware platform designed for network service applications which is a noiseless system ideal for silence environments use. Built with Intel® Embedded IA components with warranty of longevity, supports Intel® AtomTM /Celeron® Apollo Lake-I low voltage processors. The SCB-6911 supports one DDR3L memory socket.

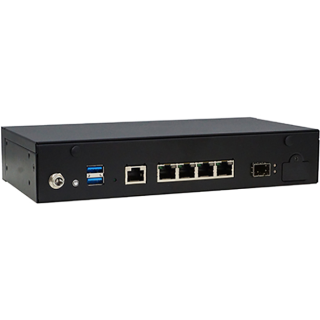

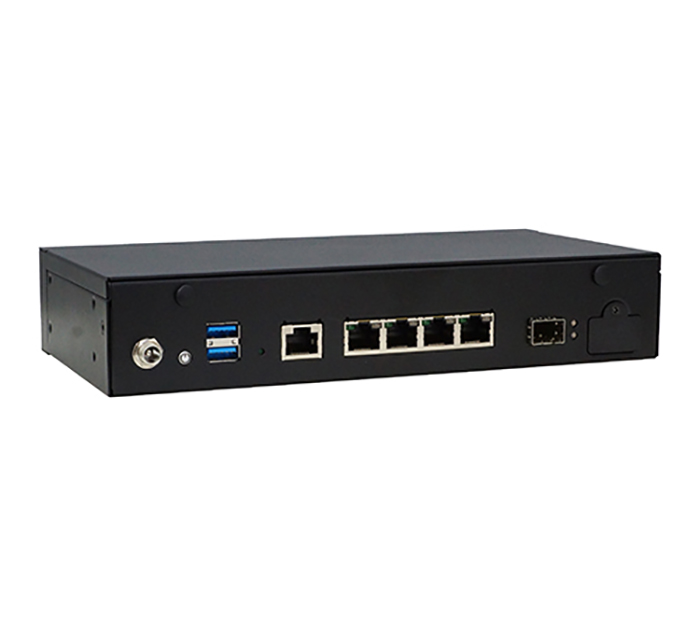

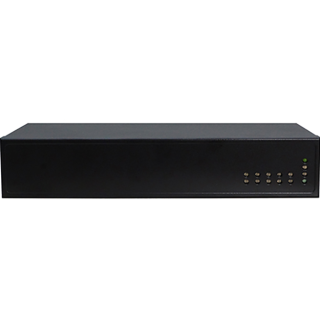

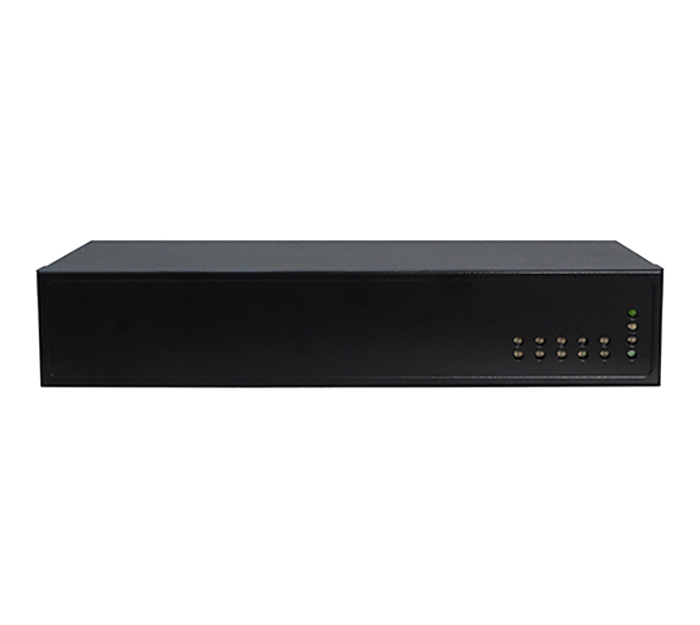

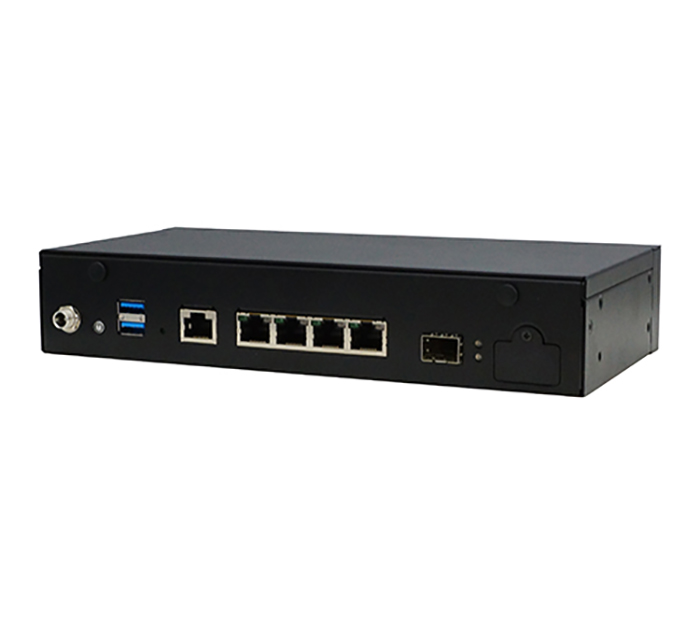

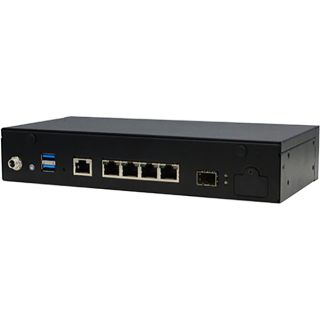

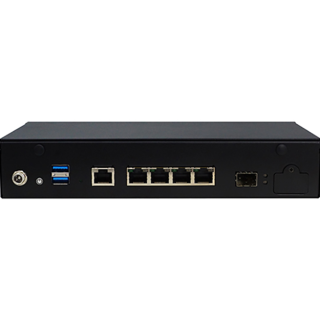

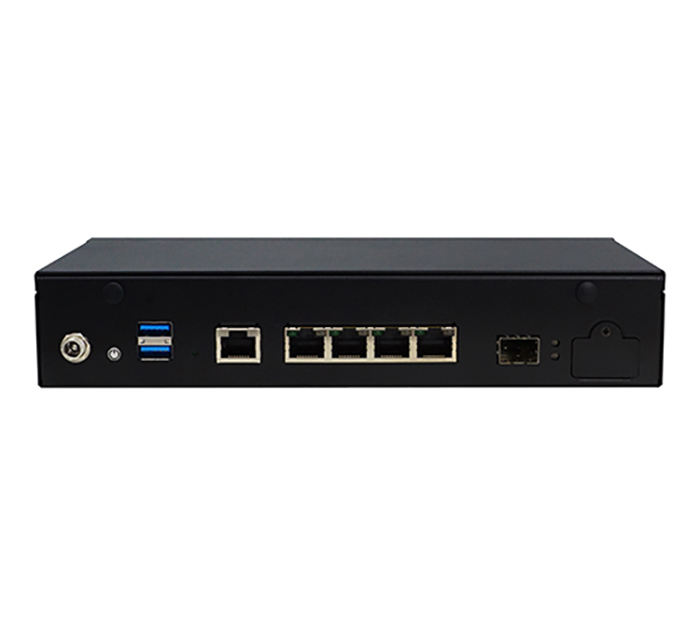

In order to provide the best network performance and best utilization, the storage interfaces include eMMC / SATA 3 HDD/SSD, and it affords four Copper and one Fiber GbE on rear-panel. The rear panel also has two USB 3.0 ports, one RJ-45 console port. The front panel has LED indicators that monitor power and storage device activities for local system management, maintenance and diagnostics. In addition, the SCB-6911 supports one mini-card socket for expansion purpose. The networking system is RoHS, FCC and CE compliant.
1x Fiber GbE ports, Intel® I210IS, PCIe x 1
1xStatus (Green/Red)
1x Power LED (Green)
1x HDD LED (Blue)
5x pairs LEDs for Ethernet ports speed and Active/Link
(9.1”W x 4.5” D x 1.7” H)
non-condensing
